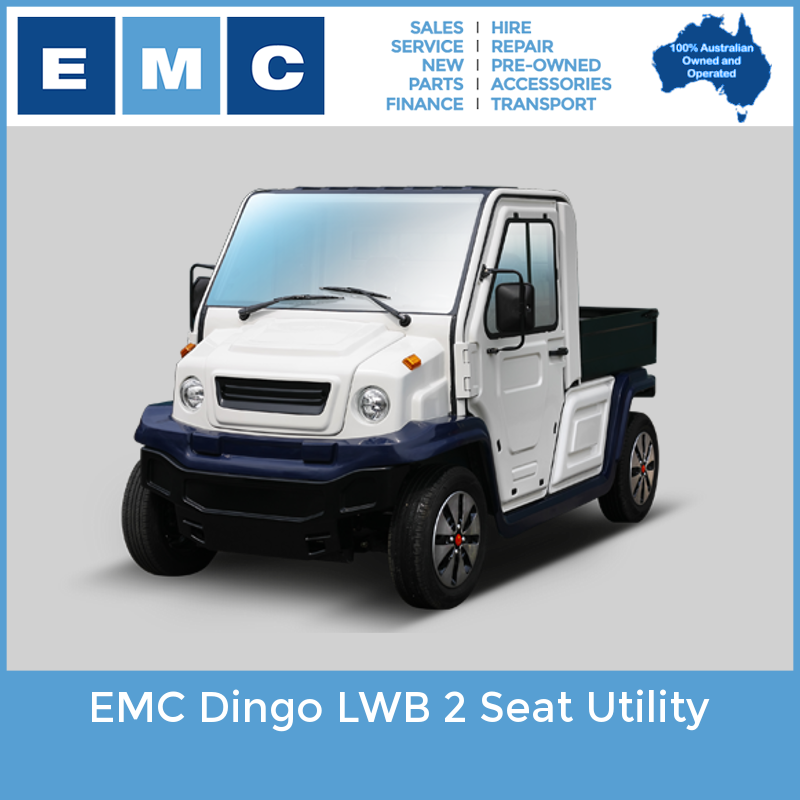

Emc Dingo Lwb 2 Seat Utility

EMC DINGO LWB 2 SEAT UTILITY SHORT TRAY The EMC Dingo offers a reliable, robust and rugged solution to commercial transportation needs, well suited to the harsh Australian climate. This 2 Seat electric vehicle offers the perfect combination of toughness and efficiency to meet your mobility needs. Ideal applications include any airport, sports grounds and stadiums, resorts, hotels, tourist attractions and other commercial complexes. KEY COMPONENTS AND PERFORMANCE Motor: 7.0kW AC Electric Power Source: 72v Deep Cycle Trojan Batteries Controller: Programmable Curtis Controller Motor Type: Shunt Wound Battery Charger: Integrated Delta Q On-Board Smart Charger Max Speed: Pre set to 20km/h Max Charge Time: 8hr Range (Loaded): > 90km Turning Circle: 5m CAPACITY Seating: 2 Seats Vehicle Weight: 975kg (including batteries) Utility Tray Carrying Capacity: 150kg DIMENSIONS Overall Length: 3190mm Overall Width: 1500mm Overall Height: 1720mm Ground Clearance: 170mm Utility Tray Dimensions: 1200mm l x 1320mm w x 305mm h BODY AND FRAME Chassis / Frame: Powder Coated Welded Steel Body: Fibreglass and Plastic Roof: Fibreglass Windshield: Laminated Glass with Twin Wipers Doors: Steel Frame, Plastic Inserts and Sliding Windows STEERING AND SUSPENSION Steering: Single-Stage Rack and Pinion Steering System. Automatic Rocker Compensating Function Front Suspension: Independent Suspension, Helix Spring and Shock Absorber Rear Suspension: Semi Independent - Torsion Beam Brake System: 4 Wheel Hydraulic - Front Disc - Rear Drum Park Brake: Hand Brake FEATURES STANDARD Laminated Glass Windscreen Headlights - Low/High Beam Tail Lights, Blinkers, Horn Speedometer/ Odometer/ Battery Gauge 14.5" Alloy Wheels 2 Point Seat Belts 2 x Side Mirrors 12v Outlet for Accessories OPTIONAL Air Conditioning - Cooling and Heating Reverse Camera Lead Crystal or Lithium Battery Upgrade Kit 3 Point Retractable Seat Belts Amber Light Bar with Siren and Microphone Fire Extinguisher Corporate Branding Single Point Watering System Roof Racks Flashing Amber Beacon Adjustable Front Seats Audio Unit Tow Bar Trailer Please note: specifications above are subject to change at any time.

AVAILABLE COLOURS Red, Green, Blue, Black, Champagne, White
