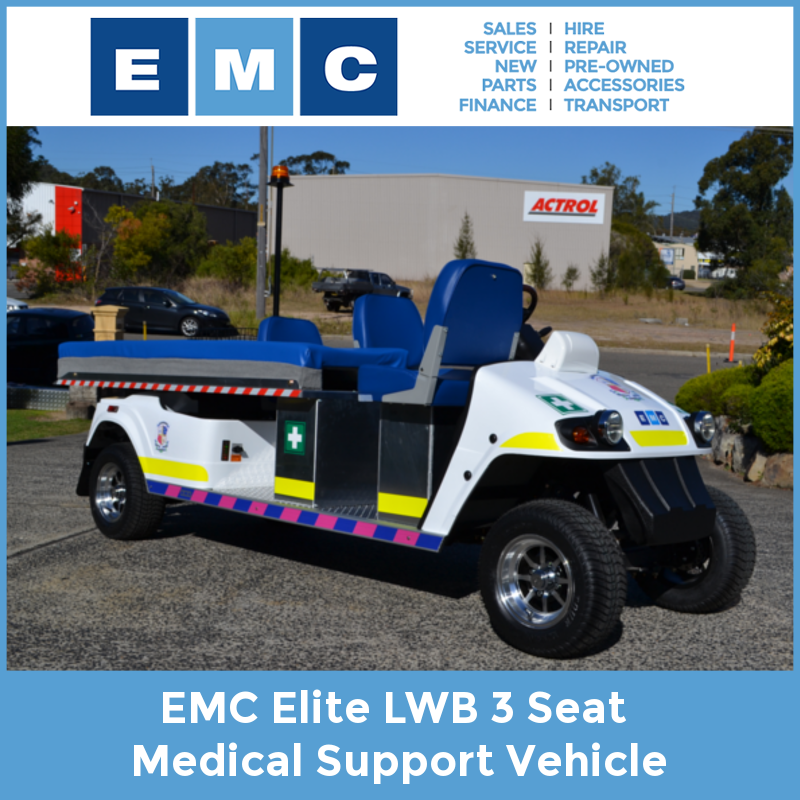

Emc Elite Lwb 3 Seat Medical Support

LWB 3 SEAT MEDICAL SUPPORT The EMC Elite 3 Seat medical Support Vehicle is supremely functional, reliable and comfortable for all users. The 3 seat medical support unit with a customisable stretcher is ideal for any commercial, industrial, leisure or sporting event where a first aid requirement is necessary. Current owners utilise the vehicle at sports stadiums and grounds, parks and other facilities for the safe care of players and spectators alike. KEY COMPONENTS AND PERFORMANCE Motor: 5.3kW DC Electric Power Source: 48v Deep Cycle Trojan Batteries Controller: 400amp Programmable Curtis Controller Motor Type: Shunt Wound Battery Charger: Integrated Onboard Delta-Q Smart Charger Max Speed: 20km/h Max Charge Time: 8hr Range (Loaded): > 80km Fully Loaded Climbing Ability: 20% Fully Loaded Turning Circle: 4.5m CAPACITY Seating: 3 Seats Vehicle Weight: 618kg (including batteries) Carrying Capacity: 450kg DIMENSIONS Overall Length: 3710mm Overall Width: 1200mm Overall Height: 1890mm Ground Clearance: 120mm BODY AND FRAME Chassis / Frame: Welded Steel with PEC Treatment Body: Injected Moulded Plastic Roof: Fibreglass - Option of No Roof Available Impact: Reinforced Front and Rear Bumpers STEERING AND SUSPENSION Steering: Self-Compensating Rack and Pinion Front and Rear Suspension: Front and Rear Leaf Springs + Hydraulic Cylinder Brake System: Rear Wheel Hydraulic Park Brake: Hand Brake FEATURES STANDARD Split Fold Windscreen Speedometer/ Odometer/ Battery Gauge Headlights, Tail Light, Blinkers Horn Basic Stretcher Reversing Alarm 10" Alloy Wheels and kenda Tyres 2 Point Inertia Reel Seat Belts 4 Cup/ Drink Holders 2 x Side Mirrors 12v Outlet for Accessories OPTIONS Hard Compound 6 Ply Tyres Safety Decals Seat Covers Approved Medical Stretcher Flashing Amber Beacon Remove Roof Weather Covers PA and Audio System Storage Boxes Corporate branding Any Customised Works to Suit Your Exact Requirements Supply of Femo or Stryker Stretchers Please note: specifications above are subject to change at any time. AVAILABLE COLOURS
